How it works
SEND US RELEVANT INFORMATION
-
AS BUILTS
-
DWG FILES
-
HGL INFORMATION
WE ANALYZE THE INFORMATION
-
PERFORM NETWORK ANALYSIS
-
CREATE REPORT
-
LOCATE ERRORS
-
MAKE RECOMMENDATIONS
WE SEND YOU A FULL REPORT FOR SUBMITTAL TO THE RELEVANT WATER JURISDICTION FOR REVIEW
What is a Water Network Analysis?
A water network analysis report is a document that summarizes the results of hydraulic modeling of a water distribution system.
The report typically includes:
-
Data Tables: Output results for pipes and nodes, including flow rates, flow velocities, head loss, hydraulic grade, node pressure, demand, and other pertinent information.
-
Maps: Site maps showing project boundaries and node maps delineating pipeline alignments and diameters, along with other relevant information.
-
Written Description: A description of the project, location, existing facilities, land use, number of units, and fire flow requirements.
The report is used for various planning and design purposes, including:
-
Evaluating the performance of existing systems
-
Assessing the impacts of proposed developments or modifications
-
Ensuring that the system can meet current and future demands

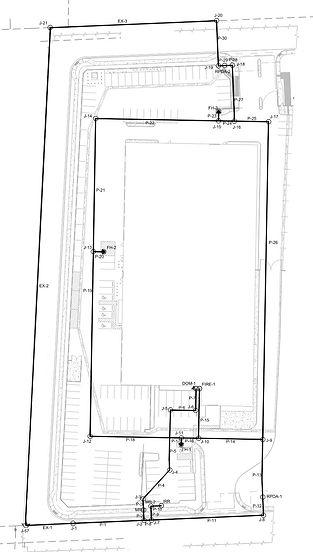

EXAMPLE OF A NODE MAP USED IN A FINAL REPORT

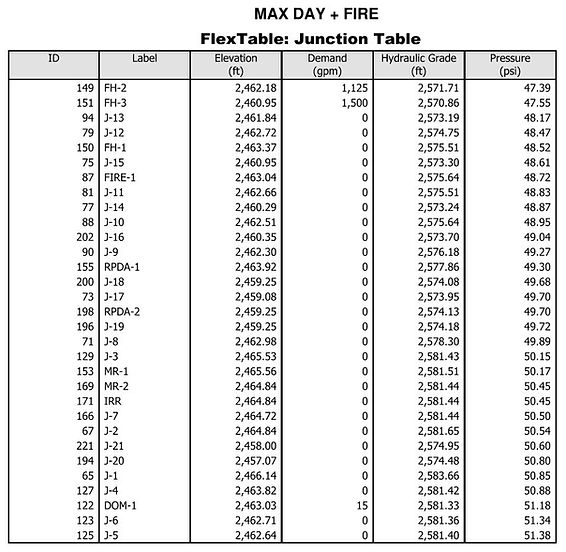

EXAMPLE OF A TABLE USED IN A FINAL REPORT

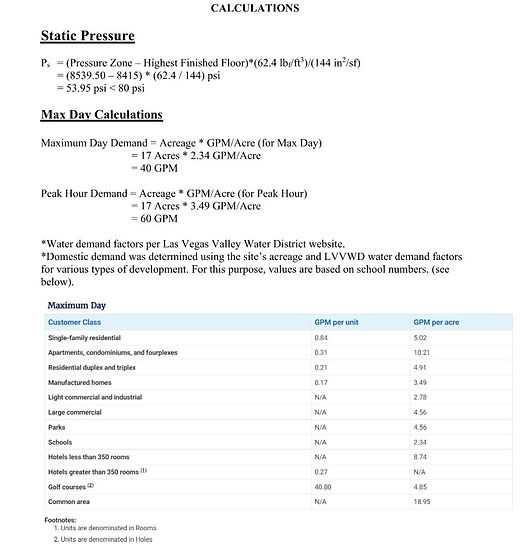

EXAMPLE OF CALCULATIONS IN A FINAL REPORT
